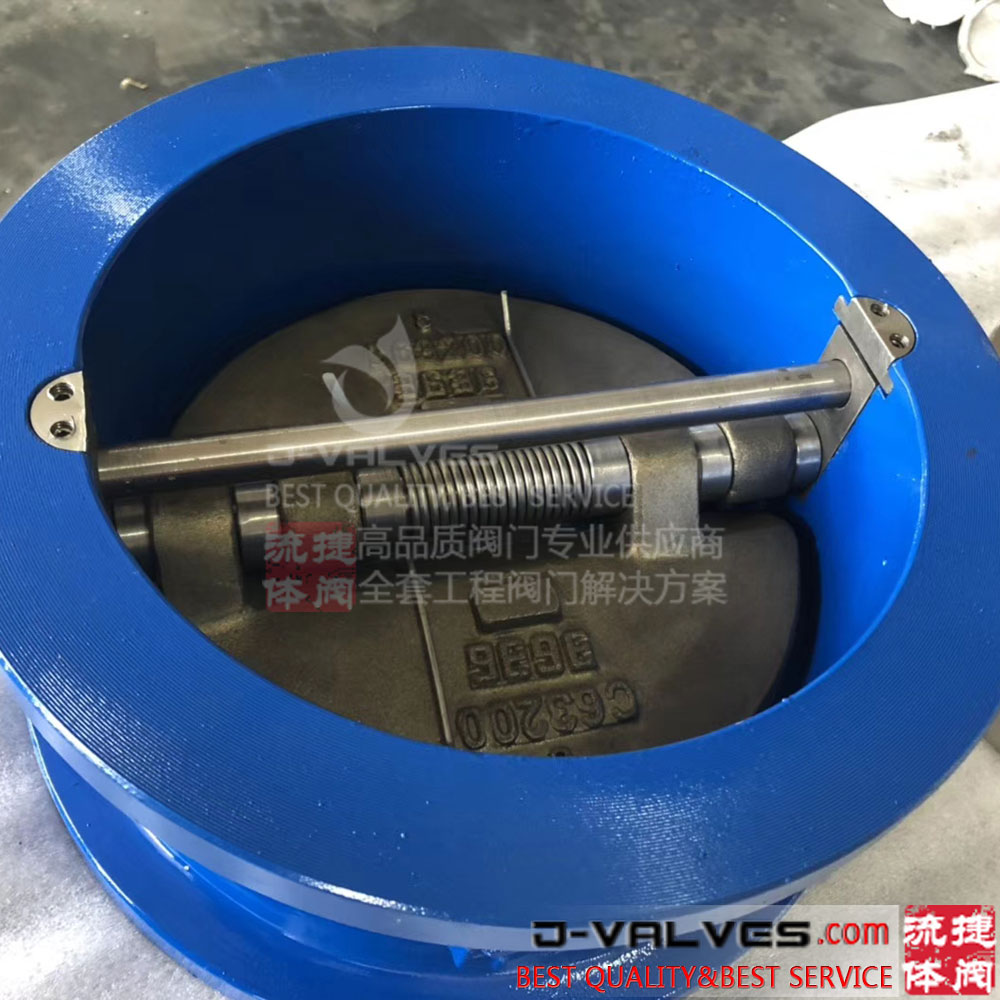

Cast Steel Double Disc Dual Plate/Flap/Butterfly Wafer Check Valve
1.Cast Steel Double Disc Dual Plate/Flap/Butterfly Wafer Check Valve Product Description:
1. Products Name: DUAL PLATE CHECK VALVE WAFER TYPE
2. Working pressure: PN10/16/25
3. Tests: API598; DIN3230
4. Flange standard: DIN2501 PN10/PN16; BS4504 PN10/PN16;
BS10 TABLE"D"/"E" /JIS2220 10K/16K; ANSI125/150
5. Face to face: ANSI125/150; DIN3203 K3-1999
6. Applications: Water, industrial systems
7. Working temp: EPDM: -10° C~+120° C/NBR: -10° C~+80° C/VITON: -23° C~+150° C/
8. Medium: Fresh water, sea water, waste water, food stuff, steam, all kinds of oil, all kinds of acid and alkaline liquid etc
2.Cast Steel Double Disc Dual Plate/Flap/Butterfly Wafer Check Valve MATERIALS LIST:
Body | Cast iron GG25 |
Ductile Iron GGG40 | |
Stainless Steel CF8M/SS316 | |
Disc | Stainless Steel SS316/SS304 |
AL Bronze | |
Carbon Steel | |
Seat Gasket | Rubber NBR/EPDM |
Spring | Stainless Steel |
Axle | Stainless Steel |
Washer | TEFLON |
J-VALVES Note: All the data should be confirmed with the approved drawings of manufacturer.Cast Steel Double Disc Dual Plate/Flap/Butterfly Wafer Check Valve can be operated by pneumatic actuator,electric actuator,intelligent control head and manual operation.There are a variety of standards provided to customers,such as,DIN,API,ANSI,and so on
Tips:
We also manufacture other type valves, as butterfly valve, check valve, globe valve, Y strainer, sanitary butterfly valve, sanitary ball and so on.
Any item meets your interest, anything confused you, pls keep me posted, let's talk more.
J-VALVES Service:
On Samples | Buyer bear the air fee, but this fee will be reduced from order directly |
On After Sales | Free replacement if there is any quality problem |
On Delivery | Never delay delivery time |
On Materials | Ensure material pure |
Ensure material pure | Welcome |
